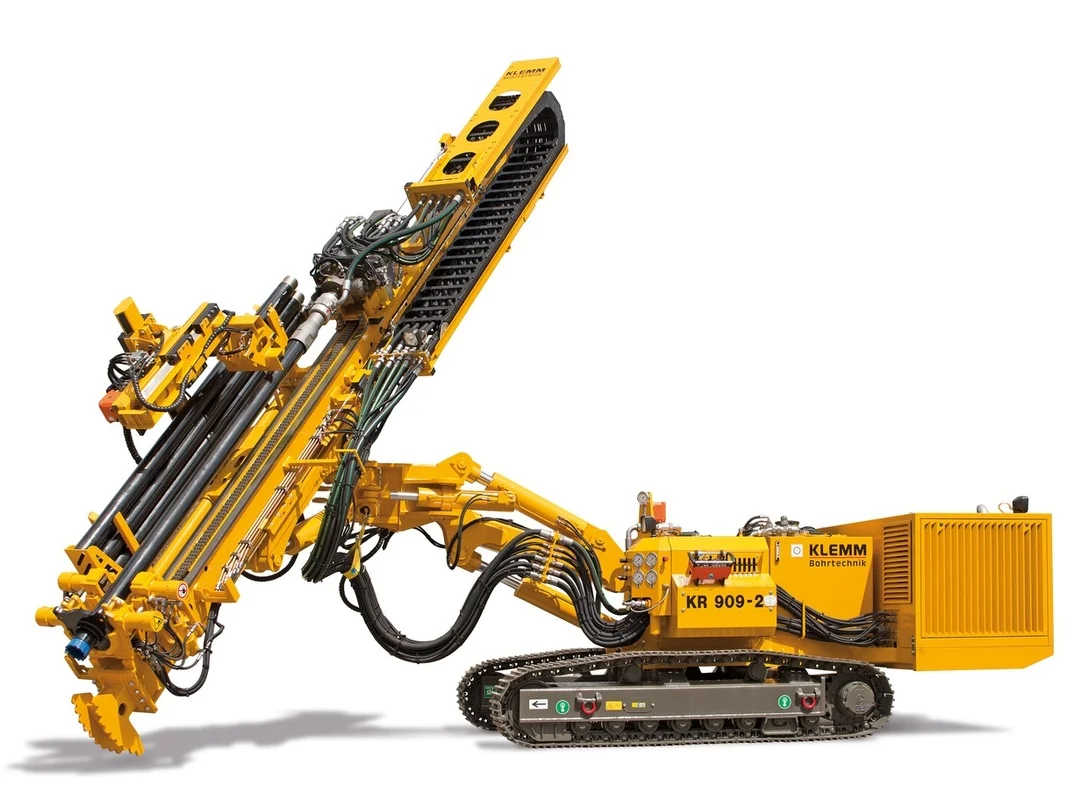

The KR 909-2 is a powerful yet simple structured drilling rig. With tried and tested KLEMM additional components, it can be adapted for a variety of tasks quickly and easily. It is designed for countries with non sulphur-free fuel and for countries outside of the EU and US/EPA.
Robust technology
The drilling rig type KR 909-2 has a 129 kW engine power and a dual-circuit load-sensing main pump system. All available crill heads are designed for the same pressure range, so that conversion to other drilling procedures and drill heads is easy, without having to interfere with the machine hydraulics. Simultaneous operation of a heavy hydraulic drifter with a flushing pump, or operation of a double-head drilling system, for example, are possible with the installed engine power.
Remote control
Drilling and tramming functions are controlled and operated by a radio remote control. This frees up the operator to choose where they want to work from, as a perfect view of all working processes is guaranteed. Wired remote control can optionally be retrofitted. Large, easy-to-read manometers provide information on the status of the drilling process. Set-up functions are directly controlled by the hydraulics; they are found on the base machine. A reserve control for drilling functions is available as standard from the factory.
Safe operation
The required drilling spots can be reached practice-orientated thanks to the optimised kinematics, while the design guarantees safe operation in all configurations, without additional jack-ups.
| Universality | For all standard work in specialised foundation engineering. |
| Sturdiness | Simple structure, components designed for hard use on the construction site. |
| Simple | Pre-defined KLEMM components for all procedures, the simplest conversion. It all fits together. |
| TCO | Attractive price thanks to simplified structure. Long-lasting thanks to proven KLEMM quality. |
