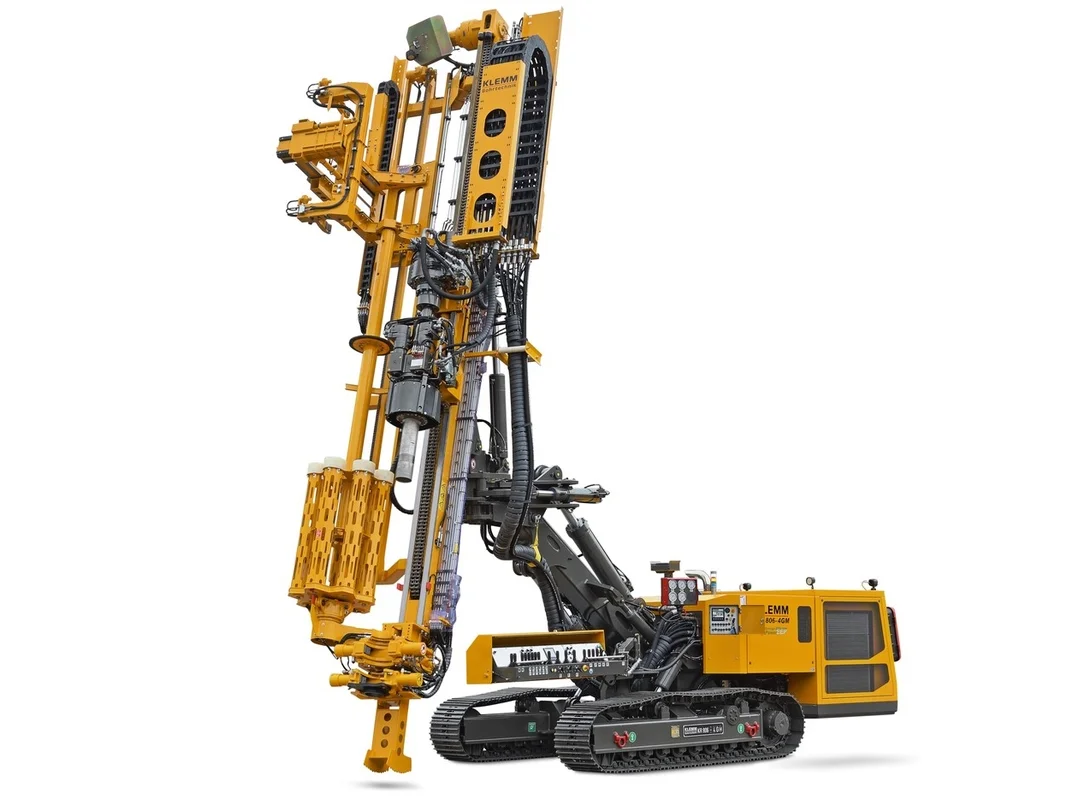

The anchor drilling rig with on-board magazine and manipulator MAG 6.1 for double rods. With the drive train of the KR 806-3GS – developed for heavy double head overburden drilling which requires one-person operation.
Energy Efficiency
The basis of the drive train is a 175 kW diesel engine with exhaust gas treatment incl. particle filter for emission stages EU Stage V or USA EPA Tier 4 final. A version for emissions stage IV (EU) with 160 kW is still available.
The hydraulic system comprises a dual-circuit load-sensing system with the reliable technologies, Load Limit Control and Power Sharing (patented). The hydraulic valve banks are integrated directly into the CAN bus and have extremely sensitive reactions. They are self-regulating so work independently of the temperature and highly accurately. The EEP-Package (EEP=Energy-Efficient Package) includes a power and energy management system which adjusts the engine speed automatically and dynamically to the load and operating state. Fuel consumption and sound emissions are greatly reduced.
The ability to control all functions by radio remote control is standard.
The functional safety of the machine controls complies with Performance Level C (ISO 13849), making its design extremely resistant to faults and fail-safe. The ROM and SPM modes are available in the machine in accordance with EN 16228. The machine is pre-fitted for installation of a KLEMM Bohrtechnik interlocking guard.
Maintenance and diagnostics
The display and diagnostics options have been hugely expanded, e.g. there are displays at the operating station for flow regulation of the individual flushing channels. All pump circuits are provided with easily accessible mini measuring ports.
| High productivity | Heavy overburden drilling with double rods for one-person operation. | |
| Modularity | Many optimally coordinated components are available. | |
| MAG 6.1 | Carousel magazine with manipulator (patented). Optimum operator’s view thanks to overhead drill rod change position. | |
| Telematics | Telematics solution for machine, process and service data for fleet management, preventive maintenance, etc. |
