The large universal and anchor drilling rig in two power classes for a variety of applications in specialised foundation engineering and other fields of application.
Efficient performance

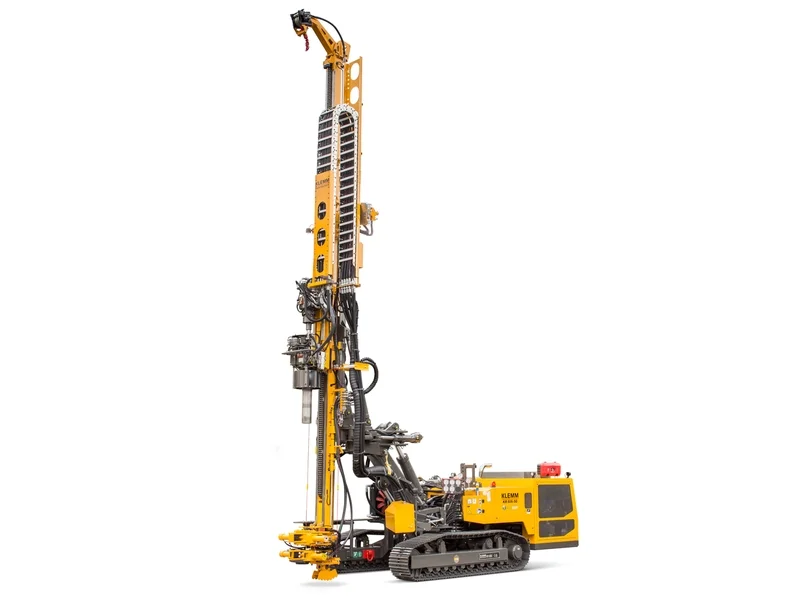

The KR 806-5G is not only optimally designed for the operation of powerful double-head drilling systems with a hydraulic drifter, but is also provides power reserves for the simultaneous operation of further consumers, e.g. flushing pumps. The EEP-Package (EEP=Energy-Efficient Power) includes a power and energy management system which adjusts the engine speed automatically and dynamically to the load and operating state. Fuel consumption and sound emissions are greatly reduced.
Maintenance and diagnostics
The display and diagnostics options have been hugely expanded, e.g. there are displays at the operating station for flow regulation of the individual flushing paths. All pump circuits are provided with easily accessible mini measuring devices.
Radio remote controllability
The option to control all functions by radio remote control is standard. The functional safety of the machine controls complies with Performance Level C (ISO 13849), making its design extremely resistant to faults and fail-safe. The ROM and SPM modes are available in the machine in accordance with EN 16228. The machine is pre-fitted for installation of a KLEMM Bohrtechnik interlocking guard.
| Universality | The drilling rig is suited to both heavy anchoring and foundation drilling work. |
| Modularity | Many optimally coordinated components are available |
| Extra power | 245 kW and additional hydraulic circuit for high-power drill heads (e.g. double head with vibration drill drive). (245 kW |
| Telematics | Telematics solution for machine, process and service data for fleet management, preventive maintenance, etc. |
