VS 41-E grouting station

VS 41-E grouting station

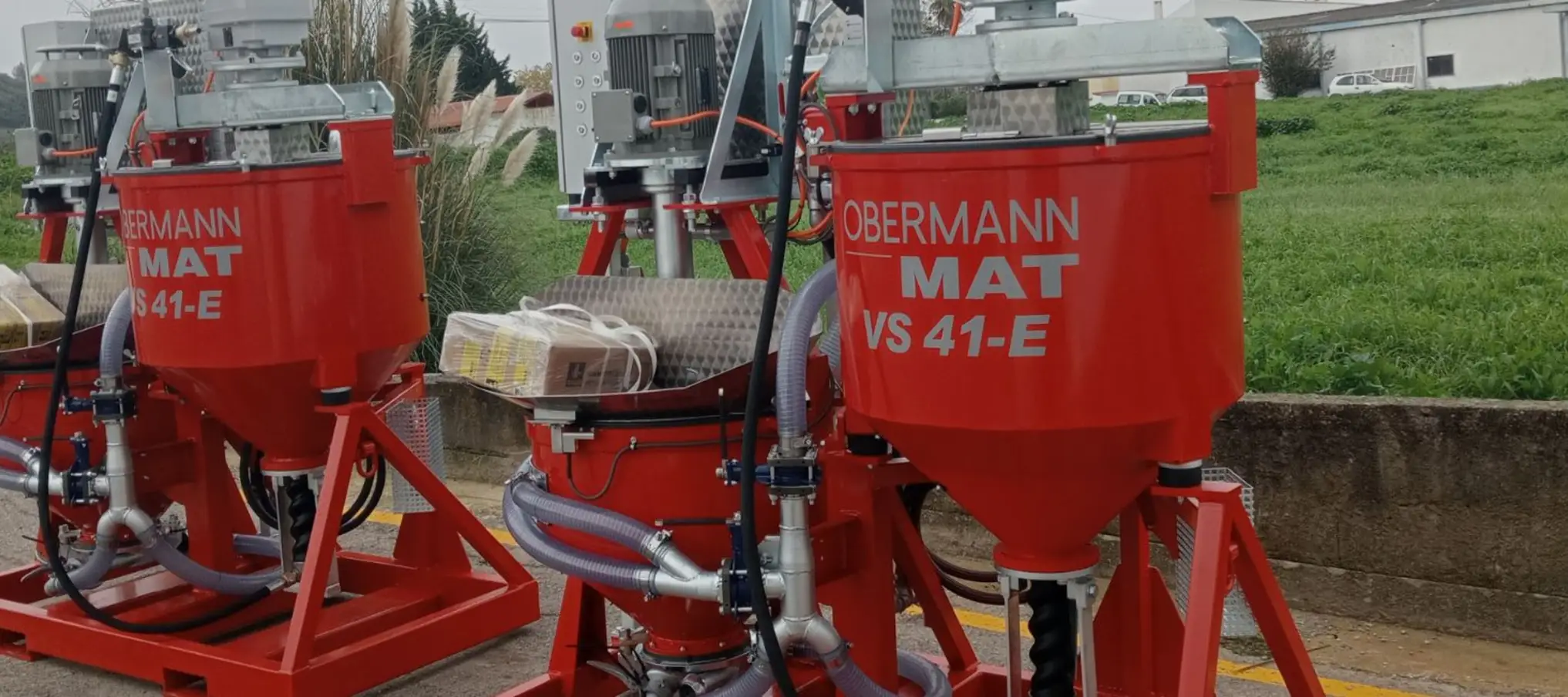

The compact VS 41-E slurry, mixing and injection plant, comprising a mixer and storage tank with integrated injection pump and electric drive. The mixing and injection plant for universal use was specially designed for applications in the area of geothermal energy, for instance for grouting geothermal probe boreholes and cavity filling with the appropriate special materials.

-E

Drive type

36 l/min

Max. flow rate pump

55 bar

Max. flow pressure

130 l

Mixer capacity

260 l

Storage tank capacity

1,850 x 1,100 x 2,320 mm

Dimensions (LxWxH)

660 kg

Gewicht
