AVS 110-E grouting station

Categories BAUER MAT Products, Grouting stations, Mixing & Grouting

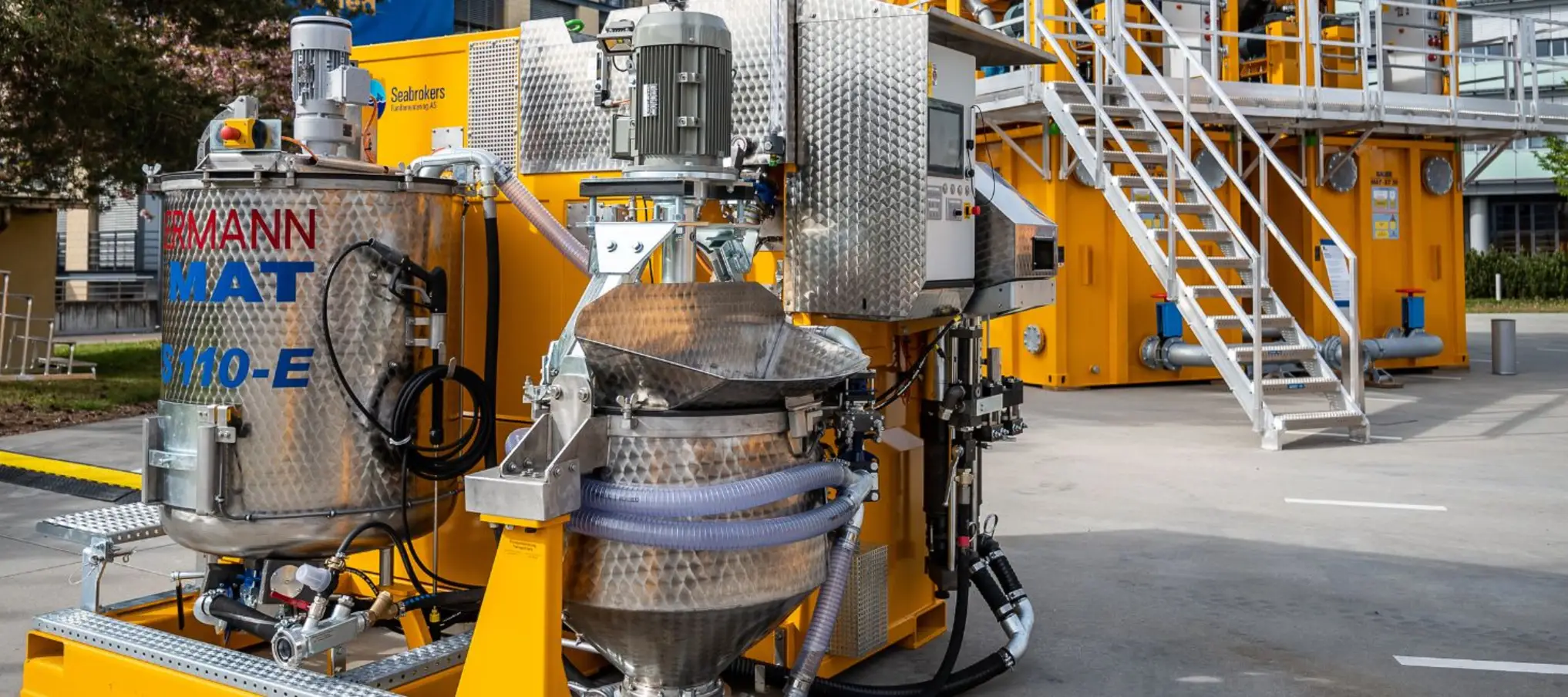

AVS 110-E grouting station

The compact AVS 110-E slurry, mixing and injection plant, comprising:

stainless steel mixing and storage tanks and stainless steel water storage
injection pump as a standing two-plunger pump
Electro drive

Die universell einsetzbare Misch- und Injektionsanlage wurde speziell für die Anwendung im Bereich der Anker-, Fels- und Sohlinjektionen, Hohlraumverfüllung, Spülbohren, Verpressarbeiten, Tunnelbau, Bodenmischen und Verdichtungsinjektionen entwickelt.

-E

Drive type

175 l/min

Max. flow rate pump

100 bar

Max. flow pressure

200 l

Mixer capacity

500 l

Storage tank capacity

8 m³/h

Nominal mixing capacity

2,500 x 2,100 x 2,200 mm

Dimensions (LxWxH)

2,350 kg

Weight
